友善RK3399人工智能NanoPi NEO4开发板WiFi蓝牙Ubuntu18安卓8.1

只要单板：NanoPi-NEO4单板主机 1个-送双频天线；
单板+散热片：NanoPi-NEO4单板主机+NEO4散热片；
入门套餐：NanoPi-NEO4单板主机+NEO4散热片+5V2A电源适配器(如需5V4A加30元)+Type-C线（默认不带存储，需选配）；
无忧套餐：入门套餐+USB2UART串口调试工具+线刷和ADB调试工具；
扩展套餐：入门套餐+USB2UART串口调试工具+线刷和ADB调试工具+读卡器+16GB-TF卡+HDMI线+网线；
豪华套餐： 入门套餐（5V4A电源）+USB2UART串口调试工具+线刷和ADB调试工具+读卡器+16GB-TF卡+HDMI线+网线+CAM1320摄像头+宽动态400万摄像头+4G全网通网络通信模块（仅支持Android系统）；

可选模块介绍

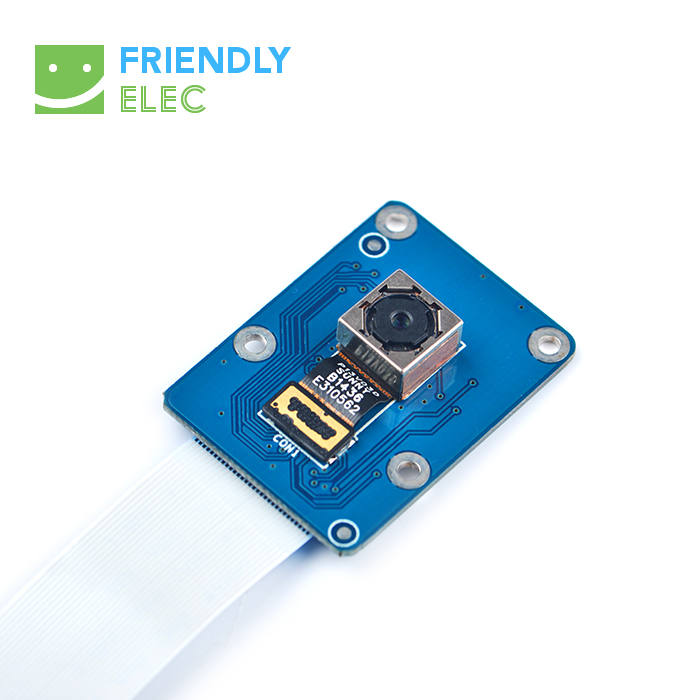

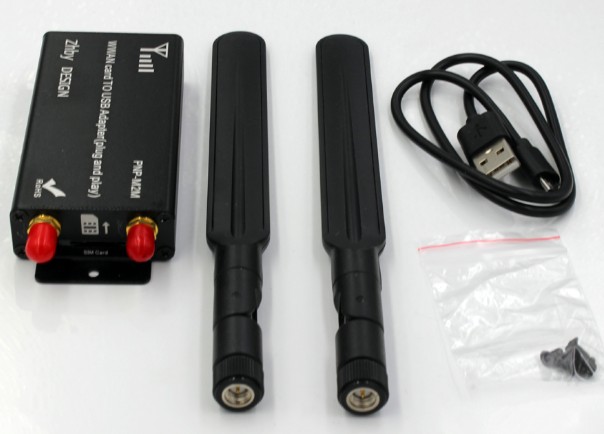

可双摄高清USB摄像头	1300万像素高清摄像头	4G网络通信模块	400万像素宽动态摄像头
专用散热片	USB转串口调试工具	EMMC存储模块Android必备	存储卡扩展

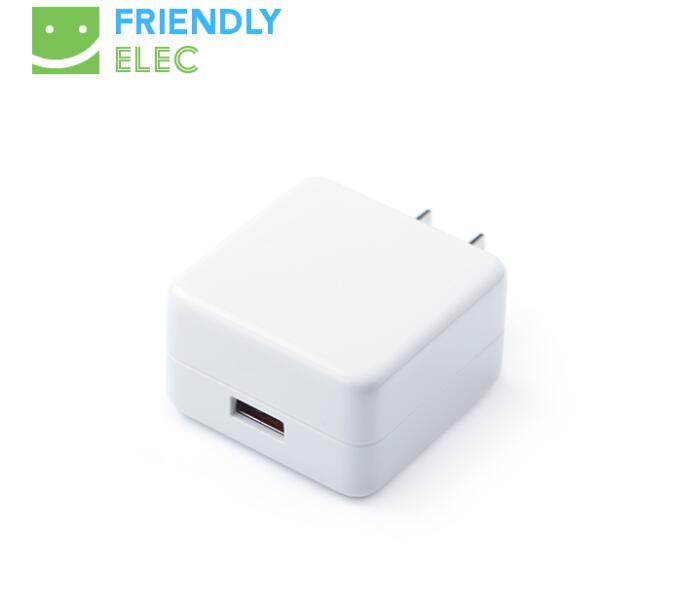

高清HDMI线	TypeC数据线/电源线	USB电源适配器	RTC纽扣电池，需自己手工焊接到主板
USB Hub集线器	GPS模块

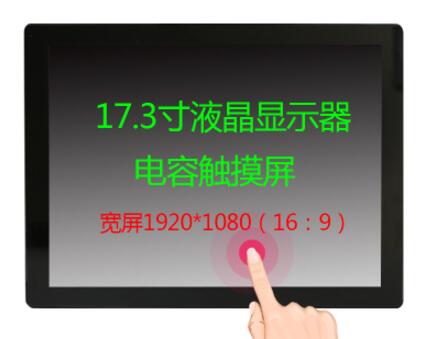

TTL转RS232串口模块	10.1英寸电容触摸屏	更大尺寸电容屏	NEO4用GPIO扩展板

http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO4

Android 8.1

[Android 8.1 Uboot源代码下载地址]:

https://gitlab.com/friendlyelec/rk3399-android-8.1/tree/master/u-boot

[Android 8.1 Linux-4.4.y 内核源代码下载地址]:

https://gitlab.com/friendlyelec/rk3399-android-8.1/tree/master/kernel

[Android 8.1 BSP源代码下载地址]:

https://gitlab.com/friendlyelec/rk3399-android-8.1

Android 7.1

[Android 7.1.2 Uboot源代码下载地址]:

https://gitlab.com/friendlyelec/rk3399-nougat/tree/nanopc-t4-nougat/u-boot

[Android 7.1.2 Linux-4.4.y 内核源代码下载地址]:

https://gitlab.com/friendlyelec/rk3399-nougat/tree/nanopc-t4-nougat/kernel

[Android 7.1.2 BSP源代码下载地址]:

https://gitlab.com/friendlyelec/rk3399-nougat

FriendlyCore/FriendlyDesktop/Lubuntu

[FriendlyCore/FriendlyDesktop/Lubuntu Uboot源代码下载地址]:

https://gitlab.com/friendlyelec/rk3399-nougat/tree/nanopc-t4-nougat/u-boot

[FriendlyCore/FriendlyDesktop/Lubuntu Linux-4.4.y 内核源代码下载地址]:

https://github.com/friendlyarm/kernel-rockchip

CPU	Model: Rockchip RK3399 Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU	Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC
VPU	4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
PMU	RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, solfware power-down, RTC wake-up, system sleep mode
Memory	1GB DDR3-1866
Storage	eMMC: no Onboard eMMC, but has a eMMC socket MicroSD Slot: MicroSD*1 for external storage up to 128GB
Connectivity	Ethernet: Native Gbps Ethernet WiFi: 802.11 b/g/n, Bluetooth 4.0 combo module Antenna*1: IPX Connector
Audio	Audio Output: HDMI

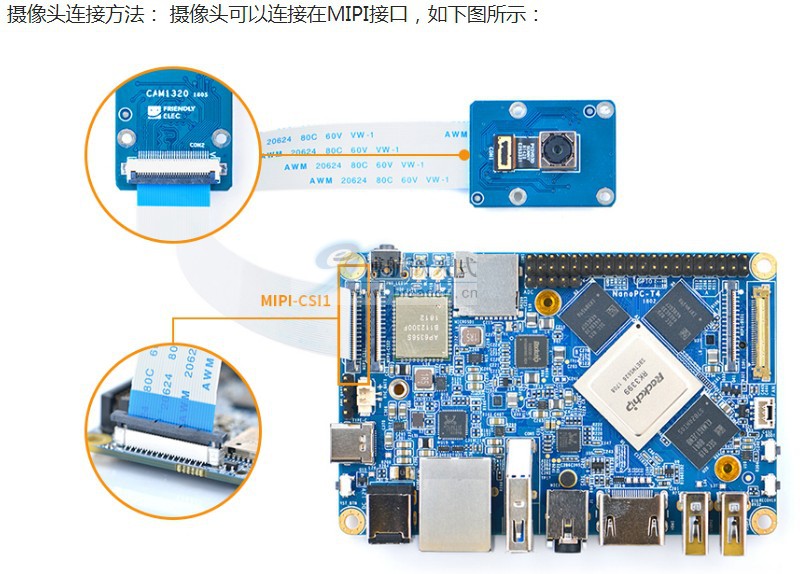

Video Input	one 4-Lane MIPI-CSI, up to 13MPix/s
Video Output	HDMI*1: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2
USB	USB 3.01: USB 3.0 Type-A ports USB Type-C1: Supports USB2.0 OTG and Power input USB 2.0*2: USB 2.0 Host, one is Type-A, the other is 2.54mm header
Pin-header	GPIO1: 40pin 2 X 3V I2C, 1x 3V UART/SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs PCIe x2 PWM x1, PowerKey GPIO2: 1 x 1.8V 8ch-I2S GPIO3: debug uart, 3V level, 1500000bps USB 2.0 x1
LED	Power LED(Red)1 GPIO Controlled LED(Green)1
Others	RTC Battery: 2 Pin 2.54mm pitch through-hole pad Working Temperature: -20℃ to 70℃
Power	DC 5V/3A

OS Support	Android 7.1.2 (eMMC Module required) Android 8.1 (eMMC Module required) Lubuntu 16.04 (32-bit) FriendlyCore 18.04 (64-bit) FriendlyDesktop 18.04 (64-bit) Armbian (3rd)
Kernel version	Linux-4.4-LTS U-boot-2014.10
